6. 🐳 Mastering Docker Images: The Comprehensive Guide

# The Image Concept: Blueprints for Runtime

A Docker image is a read-only, immutable package containing everything required to run an application: code, runtime, system libraries, environment variables, and config files.

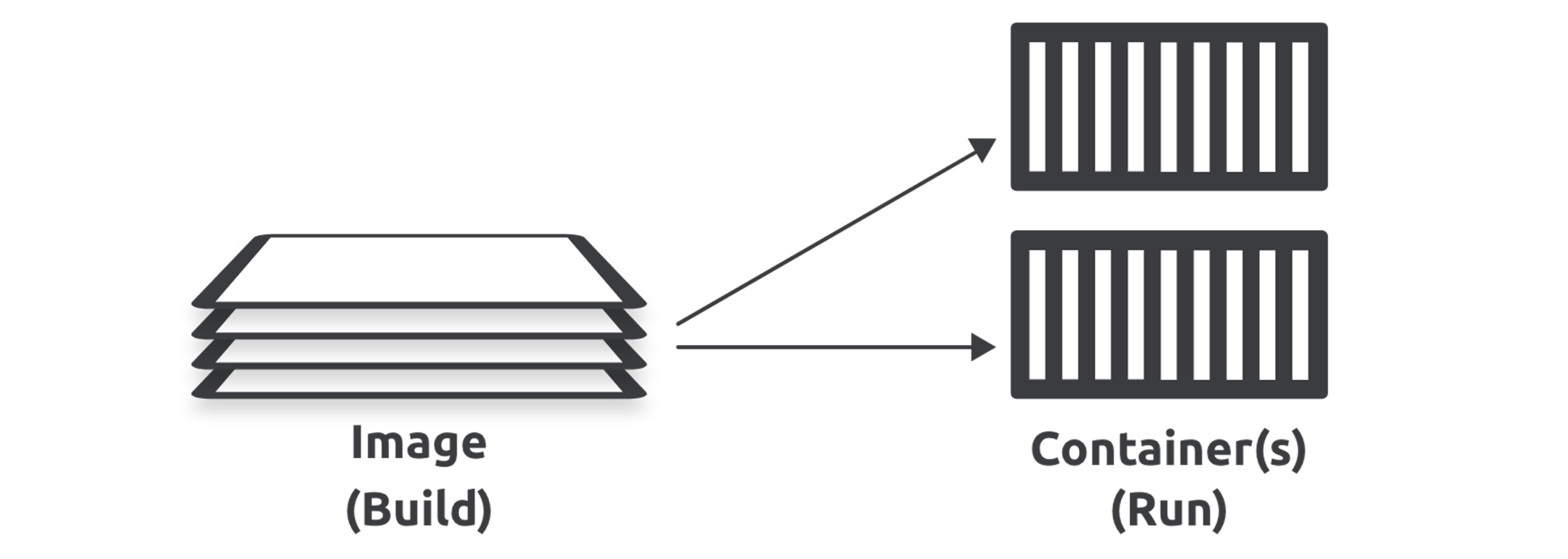

# The Build-Time vs. Run-Time Distinction

• Image (Build-Time): A static blueprint stored on disk.
• Container (Run-Time): A dynamic, living instance of an image.
• Relationship: You can instantiate multiple containers from a single image. Once a container is running, it is "bound" to its parent image. You cannot delete an image while containers (even stopped ones) are still referencing it.

# The "No Kernel" Architecture

Images are remarkably small because they lack an OS Kernel.

• Containers share the Host OS Kernel (Linux or the lightweight utility VM on Windows/macOS).
• The only OS-related components in an image are Filesystem objects (bins, libs, configs).

# Immutability

Once an image is created, it cannot be changed. Updates are made by creating a new image with a new version tag or digest.

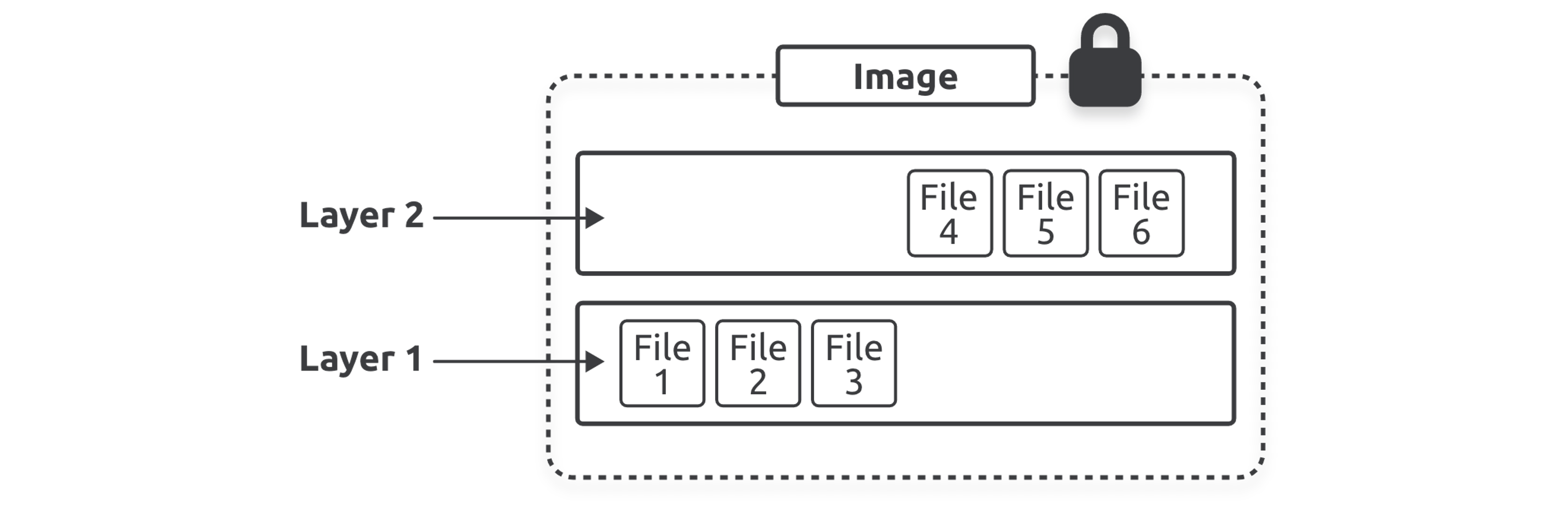

# Image Anatomy and Layering

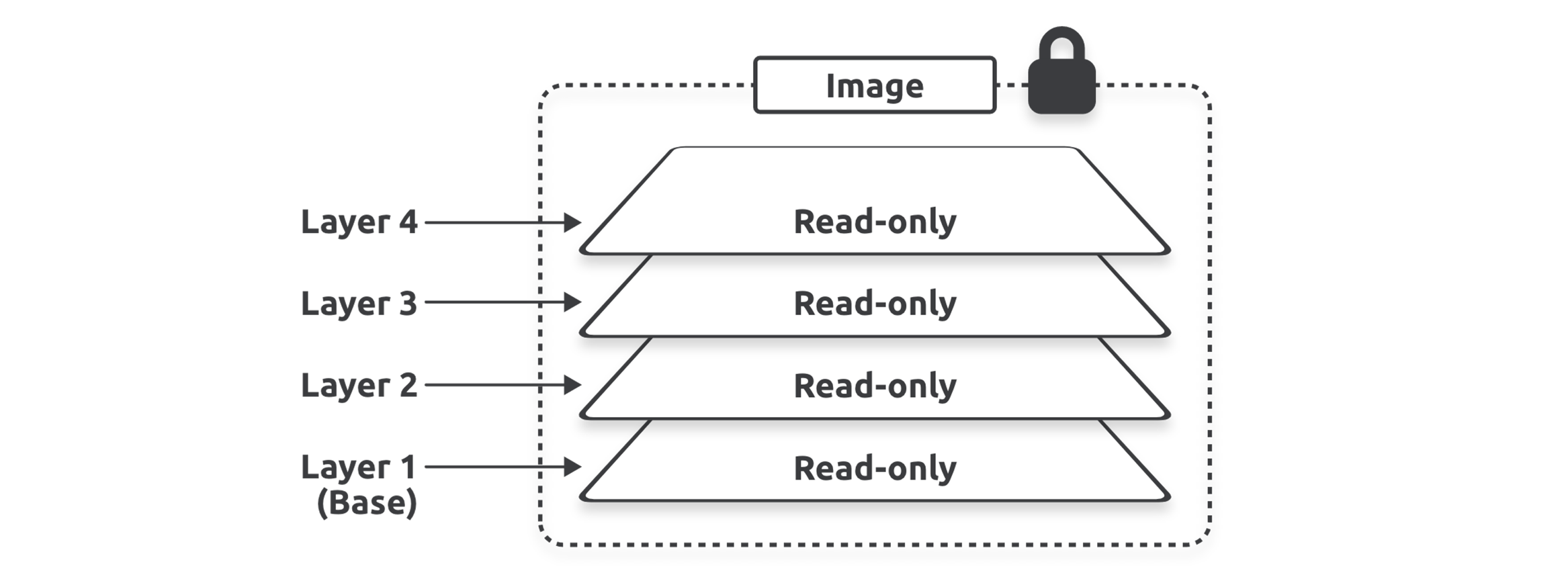

Docker creates images by stacking independent, read-only layers. This "stack" is presented as a single, unified object through a Union File System (UnionFS).

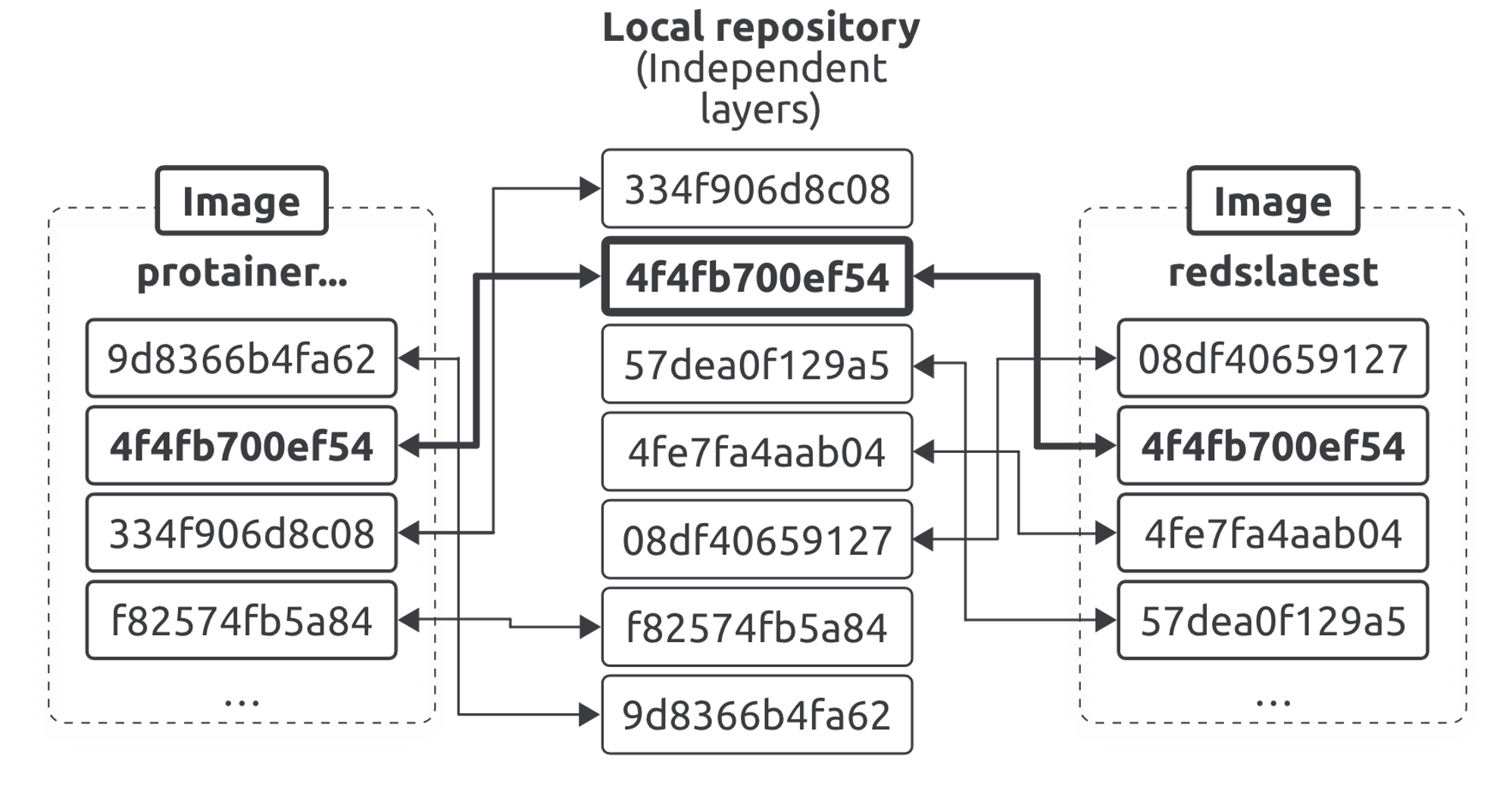

• Efficiency through Sharing: If multiple images share a base layer (e.g., alpine), Docker only stores and pulls that layer once.
• Layer Composition: Every command in a Dockerfile (like RUN, COPY, ADD) creates a new layer.
• Copy-on-Write (CoW): When a container starts, Docker adds a thin Writable Layer on top of the image. Any changes made during execution are stored here, leaving the underlying image pristine.

# The Storage Driver & Filesystem Abstraction

Docker uses storage drivers to stack these layers and present them as a unified filesystem.

• The Industry Standard: Almost all modern Docker setups use the overlay2 driver.
• Alternative Options: Depending on the host OS and requirements, Docker also supports zfs, btrfs, and vfs.
• The Abstraction Layer: Regardless of which storage driver is used (the "how"), the developer and user experience remain identical (the "what"). The driver handles the complexity of merging layers into a single file tree seamlessly.

# Storage and Registries

# The Local Repository (Image Cache)

• Linux: Typically found at /var/lib/docker/<storage-driver> (usually overlay2).
• Desktop: Stored within the managed Docker Desktop VM.
• Mechanics: Pulling an image checks your local cache first. Docker only downloads layers that are missing from your local repository.

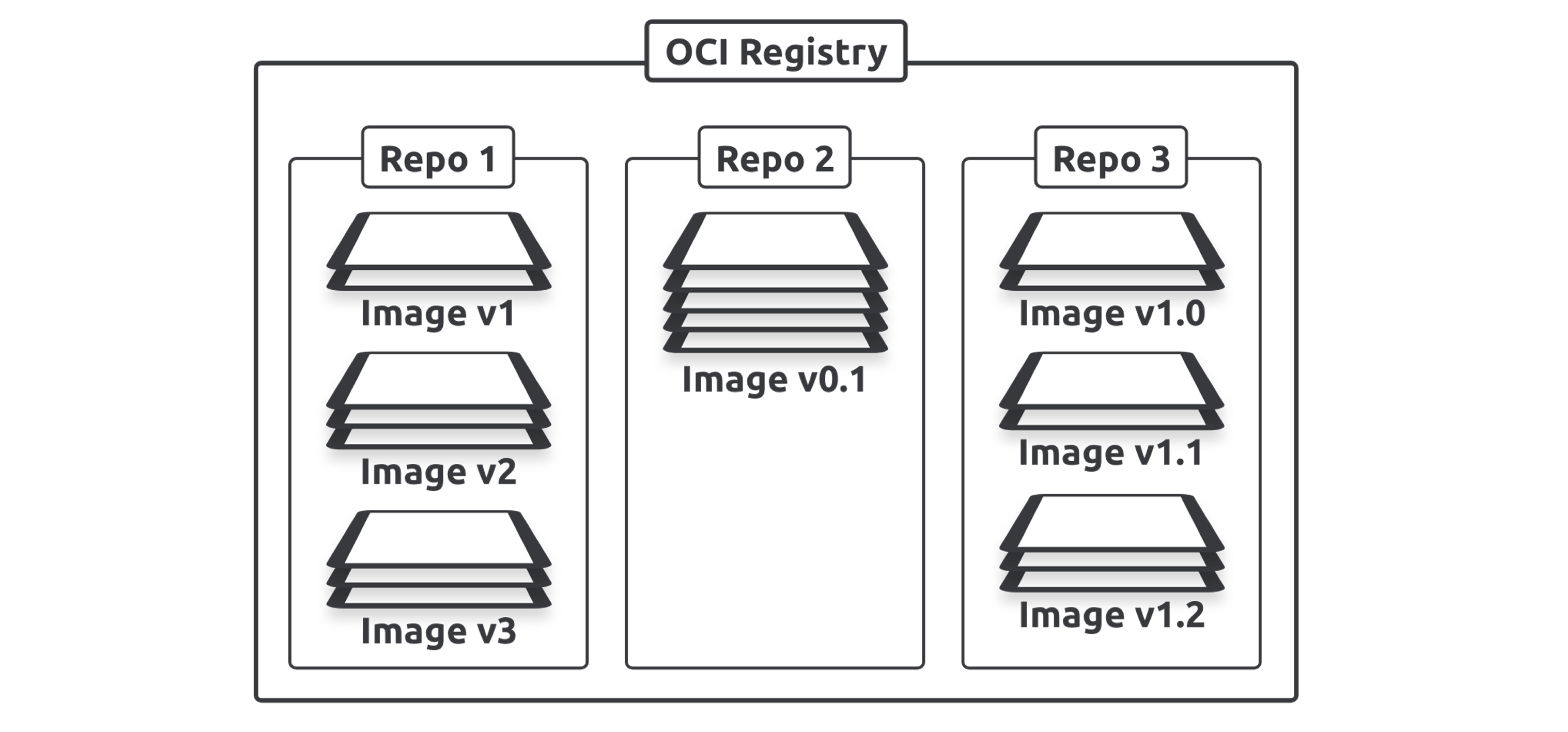

# Image Registries

Registries are centralized warehouses for images.

• OCI Compliance: Modern registries implement the OCI Distribution-Spec, ensuring interoperability across different container engines.

• Official vs. Unofficial:

  • Official: Curated and vetted by Docker and vendors (e.g., redis, nginx). They reside at the root of the Docker Hub namespace.
  • Unofficial: User-contributed. They require a prefix: username/repository.

# Naming and Tagging

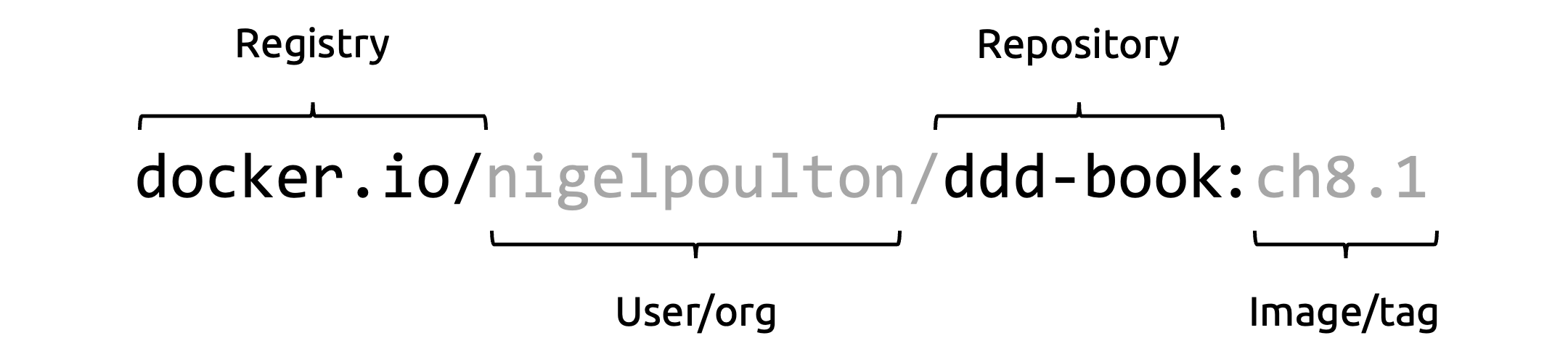

# Naming Convention

A fully qualified image name follows this structure: [REGISTRY_HOST]/[ORG_OR_USER]/[REPOSITORY]:[TAG]

• Default Registry: docker.io (Docker Hub).
• Default Tag: latest.
• Official Repos: These live in the top-level namespace (e.g., redis, nginx, alpine) and are vetted for security.

# Pulling from a custom registry (GitHub Container Registry)
docker pull ghcr.io/username/app-name:v1.2.0

[!WARNING] The latest Tag Trap: The latest tag is just a default label. It is mutable, meaning the image it points to can change. In production, always use specific version tags or digests for reproducibility.

# Image Inspection and History

# docker image inspect

Provides the full JSON metadata of an image, including the RootFS (a list of all layer SHA256 hashes). Shows high-level metadata (Architecture, OS, Config, Environment variables).

docker image inspect <IMAGE_ID>

# docker history

Shows how the image was built.

• Metadata Instructions: Commands like ENV, EXPOSE, and CMD add metadata but create 0B layers.
• Filesystem Instructions: RUN, COPY, and ADD create layers that consume disk space.

Note: In 2026, many layers in docker history appear as <missing>. This is normal; it simply means those layers were built on a different machine (e.g., the official build server) and are not individually manageable on your local host.

# Immutability via Digests

Tags are "pointers" and can be changed. Digests are cryptographic SHA256 hashes of the image's content.

• Content-Addressable Storage: If the content of an image changes, its digest must change.
• Pulling by Digest: For maximum security (preventing "Tag Poisoning"), pull images by digest to ensure you get the exact bits you tested.

docker pull alpine@sha256:5b10f432ef3da1b8d4c7eb6c487f2f5a8f096bc91145e68878dd4a5019afde11

# Distribution vs. Content Hashes

To save bandwidth, Docker compresses images during transport.

1. Distribution Hash: The hash of the compressed layer data (checked during pull/push) used during transport to ensure no tampering occurred.
2. Content Hash: The hash of the uncompressed layer data (used by the storage driver).

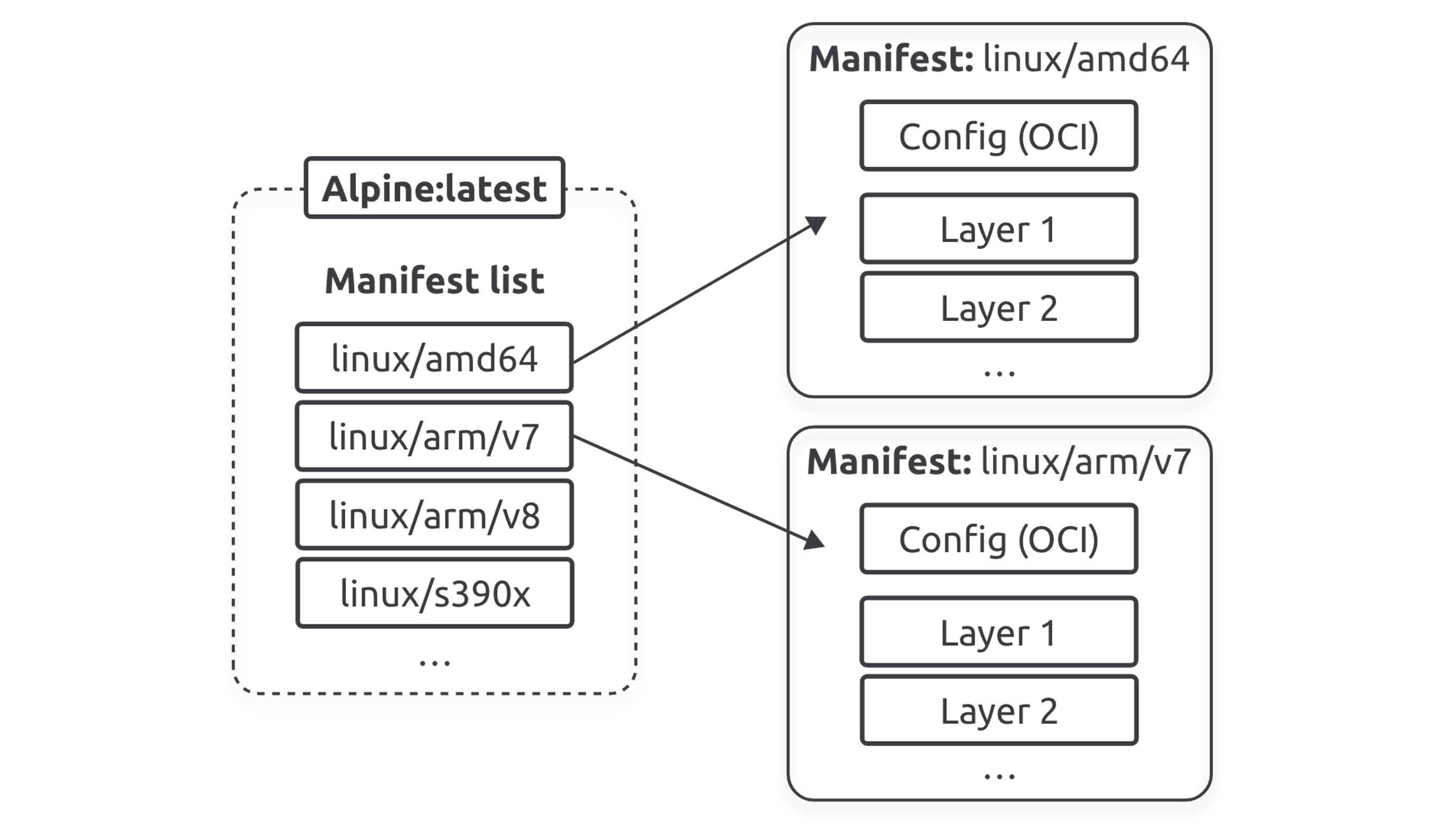

# Multi-Architecture Images

The modern web runs on amd64 (Intel/AMD) and arm64 (Apple Silicon, AWS Graviton). Docker uses Manifest Lists to hide multiple architectures behind a single tag.

1. Manifest List (or Index): A high-level list of which architectures an image supports.
2. Manifest: The specific blueprint for a specific architecture.

The Workflow: When you docker pull, the Docker Engine checks your local CPU architecture, looks at the Registry's Manifest List, and automatically pulls the correct binary for your system.

# Creating Multi-Arch Images with Buildx

docker buildx build \
  --platform linux/amd64,linux/arm64 \
  -t username/app:v1 --push .

• Emulation (QEMU): Slow, runs target architecture in a VM.
• Build Cloud: Uses native cloud hardware; significantly faster and provides a shared cache for teams.

# Security: Vulnerability Scanning

Docker Scout is the current industry standard for supply chain security, replacing legacy scanning tools.

• Quickview: docker scout quickview gives an instant risk assessment.
• CVES: docker scout cves provides deep analysis and remediation advice (e.g., "Upgrade base image from Python 3.11-alpine to 3.14-alpine").
• Policy Evaluation: Can block images from being pushed if they contain critical vulnerabilities.

docker scout quickview <image_name>

# Maintenance and Deletion

# Removing Images (rmi)

Use docker rmi to remove images by Name, ID, or Digest.

• Dangling Images: Images with no tags (result of a new build using an existing tag). Clean them using docker image prune.
• Shared Layers: Docker won't delete the actual layer files until the last image referencing them is removed.

# Bulk Deletion

To purge all local images (use with extreme caution):

# Force delete all local images (Use with caution!)
docker rmi $(docker images -q) -f

Note: The -f (force) flag should be avoided if possible. Forcing deletion of an image in use by a container creates a "dangling" image state where the tag is removed but the data remains.

# Managing the Lifecycle

• List Images: docker image ls (or docker images). Use --digests to see SHA hashes.
• Remove Image: docker rmi <ID_or_Name>.
  • Docker won't delete a layer if it's still being used by another image.
  • You cannot delete an image used by a running (or stopped) container.
• Cleanup: docker image prune removes "dangling" images (images with no tags). docker system prune -a is the "nuclear" option to clean all unused images.
