5. The Docker Engine: Architecture and Evolution

The Docker Engine is the core server-side technology used to create, manage, and run containers. While often discussed as a single entity, the modern Engine is a modular ecosystem of specialized, high-performance tools.

# 🏗️ From Monolith to Modularity

Originally, the Docker Engine was a monolith. Almost all functionality—the API, the image builder, the runtime logic—was baked into a single massive binary called the Docker daemon (dockerd).

To promote industry standards and allow other platforms (like Kubernetes) to reuse its components, Docker refactored the Engine. This "Big Break-up" moved low-level and high-level runtime logic into dedicated, specialized tools.

# ⚖️ The Influence of the Open Container Initiative (OCI)

The OCI is a governance body that ensures container tools are interoperable. They maintain three critical specifications:

1. Image Specification (image-spec): Defines the structure of the container image file.
2. Runtime Specification (runtime-spec): Defines how a container should be run (filesystem, resources, etc.).
3. Distribution Specification (distribution-spec): Standardizes how images are pushed and pulled from registries.

Docker's Implementation:

• runc: The reference implementation of the OCI runtime-spec.
• BuildKit: The engine used to build image-spec compliant images.
• Docker Hub: An OCI-compliant registry following the distribution-spec.

# ⚙️ High-Level vs. Low-Level Runtimes

Modern container management is split into two distinct stages:

Note: As of Docker Desktop 4.27.0, image management has been fully offloaded from the daemon to containerd, making the system even more modular and efficient.

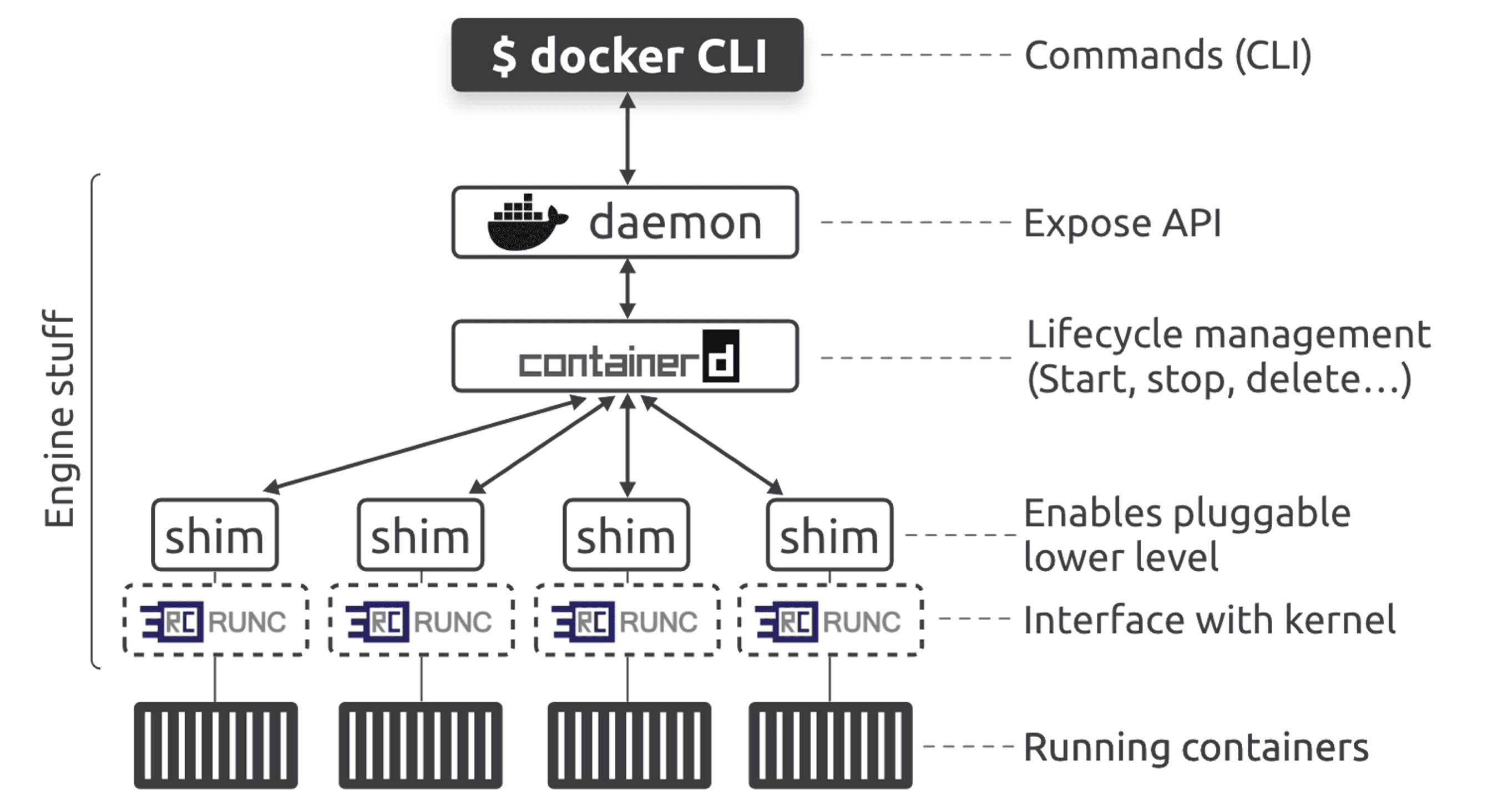

# 🚀 The Life of a "docker run" Command

When you execute a command to start a container, a sophisticated relay race occurs:

1. The Client: The CLI converts your command into a REST API request.
2. The Daemon: The request hits dockerd. The daemon interprets the intent and communicates with containerd via a gRPC API.
3. containerd: It pulls the image if necessary and converts it into an OCI Bundle.
4. runc: containerd tells runc to use the bundle to create the container. runc speaks to the kernel to set up namespaces and cgroups.
5. The Hand-off: Once the container process starts, runc exits immediately, leaving the container running as a child of a Shim.

# 🛡️ The Role of the Shim

The Shim is a small process that sits between containerd and the container. It is the secret to Daemonless Containers.

• Process Persistence: Because the shim becomes the parent of the container, you can restart or upgrade the Docker daemon (dockerd) without killing your running containers.
• I/O Management: The shim keeps the STDIN and STDOUT streams open so that if the daemon restarts, the container doesn't crash due to broken pipes.
• Runtime Agnostic: Shims make it possible to swap runc for other runtimes (like Kata Containers or gVisor) without changing how Docker or Kubernetes works.

# 📁 Linux Implementation: The Binaries

On a Linux host, you can see the modularity in action by looking at the process tree (ps -ef). You will find these distinct binaries:

• /usr/bin/dockerd: The API gateway and orchestrator.
• /usr/bin/containerd: The high-level lifecycle manager.
• /usr/bin/containerd-shim-runc-v2: The "babysitter" for the running container.
• /usr/bin/runc: (Visible only during the split-second of creation).

# ❓ Do We Still Need the Daemon?

If containerd does all the heavy lifting, why keep dockerd?

The daemon still provides the essential user-facing API. It handles image building (via BuildKit), logging, authentication to registries, and advanced networking features that are more "opinionated" than what a raw runtime like containerd provides. It is the user-friendly wrapper around the complex, modular engine underneath.
