UML Sequence Diagrams: Modeling Dynamic Interactions

# 1. Overview

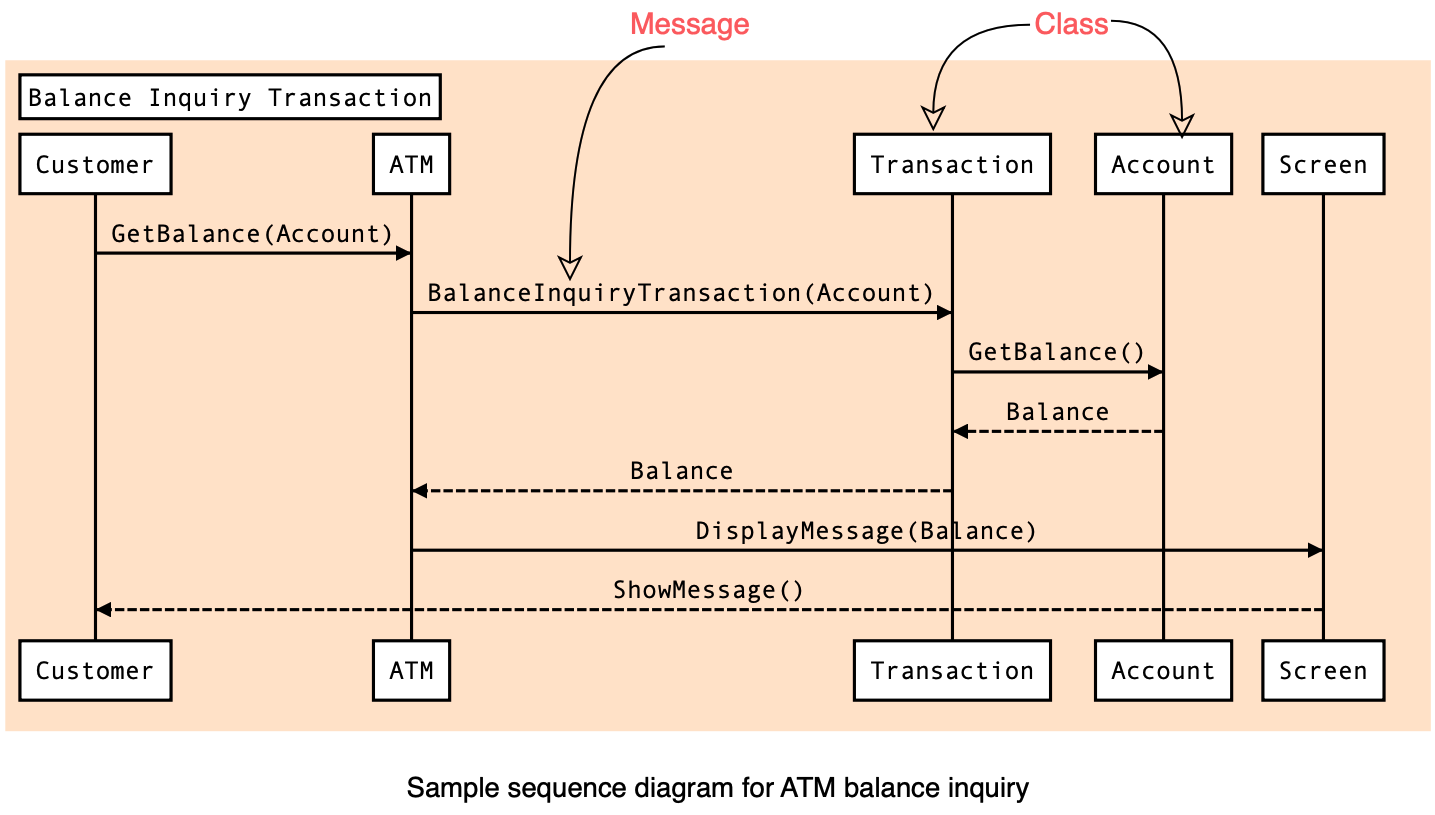

A Sequence Diagram is an interaction diagram that illustrates how objects communicate in a specific order over time. It provides a detailed, step-by-step flow of a specific use case or a sub-process within a system.

Primary Focus: The chronological order of messages.
Scope: Often used to model the logic of a single use case, a specific method implementation, or an API request-response cycle.
Clarity: While often described as "self-explanatory," their power lies in their ability to visualize complex logic that would be difficult to follow in raw code.

# 2. Dimensions of a Sequence Diagram

A sequence diagram is mapped onto a 2D grid:

The Vertical Dimension (Time): Represents the passage of time from top to bottom. Messages placed lower on the diagram occur after those placed higher.
The Horizontal Dimension (Participants): Represents the different Lifelines (Actors or Object Instances) involved in the interaction.

# 3. Core Components

# Lifelines and Actors

Actors: Represented by a stick figure; these are external entities (users or other systems) initiating the sequence.
Objects/Participants: Represented by a rectangle containing the object and/or class name. A dashed vertical line (the Lifeline) extends downward from the participant.

# Activation Bars (Execution Occurrences)

Represented by a thin rectangle on top of a lifeline. It indicates the period during which an object is performing an operation or is "active."

# Message Types

Messages are the arrows that carry information between lifelines.

Message Type	Notation	Description
Synchronous	Solid line + Filled Arrow	The sender waits for a response before continuing.
Asynchronous	Solid line + Open Arrow	The sender continues without waiting for a response (common in event-driven systems).
Return	Dashed line + Open Arrow	Indicates the completion of a task and the return of control/data to the caller.
Self-Message	U-turn Arrow	An object calling one of its own methods.

# 4. Interaction Fragments (Combined Fragments)

In modern UML (2.x), we use Frames to represent logic like loops and conditionals. This prevents the diagram from becoming a messy "spaghetti" of arrows.

Fragment	Meaning	Usage
`alt`	Alternatives	Models "If-Then-Else" logic. Only one operand executes.
`opt`	Option	Models "If" logic. The sequence inside happens only if a condition is met.
`loop`	Iteration	Models "For" or "While" logic. The sequence repeats.
`par`	Parallel	Logic that happens simultaneously across different lifelines.

# 5. Modern Best Practices (2026)

# Diagram-as-Code

Rather than drawing these manually, current industry standards prefer using Diagram-as-Code tools like Mermaid.js, PlantUML, or WebSequenceDiagrams. This allows sequence diagrams to be version-controlled in Git alongside the source code.

# Level of Detail

Conceptual Level: Focus on high-level business logic.
Implementation Level: Map directly to class methods and API endpoints.

Tip: Avoid over-modeling. If a sequence diagram looks like a literal translation of the code, it may be too detailed. Focus on the interactions that are non-obvious.
