UML Activity Diagrams: Modeling Process and Workflow

# 1. Overview

An Activity Diagram is a behavioral UML diagram used to illustrate the dynamic flow of control within a system. While a Sequence Diagram focuses on object interactions, an Activity Diagram emphasizes the flow of activities, logic branching, and concurrent processes.

• Process Modeling: Captures the step-by-step workflow of business processes or software algorithms.
• Use Case Realization: Frequently used to map out the "Basic Flow" and "Alternative Flows" of a specific Use Case.
• Functional Modeling: Represents the transformation of data (inputs) through a sequence of operations into outputs.

# 2. Core Components and Notation

# Nodes

• Initial Node: A solid black circle representing the start of the workflow.
• Activity/Action Node: A rounded rectangle representing a specific task or operation. An action should be an atomic unit of work (e.g., "Validate Password").
• Final Activity Node: A "bullseye" (a solid circle inside another circle) representing the end of the entire process.
• Flow/Edge: An arrowed line showing the direction of control flow from one node to another.

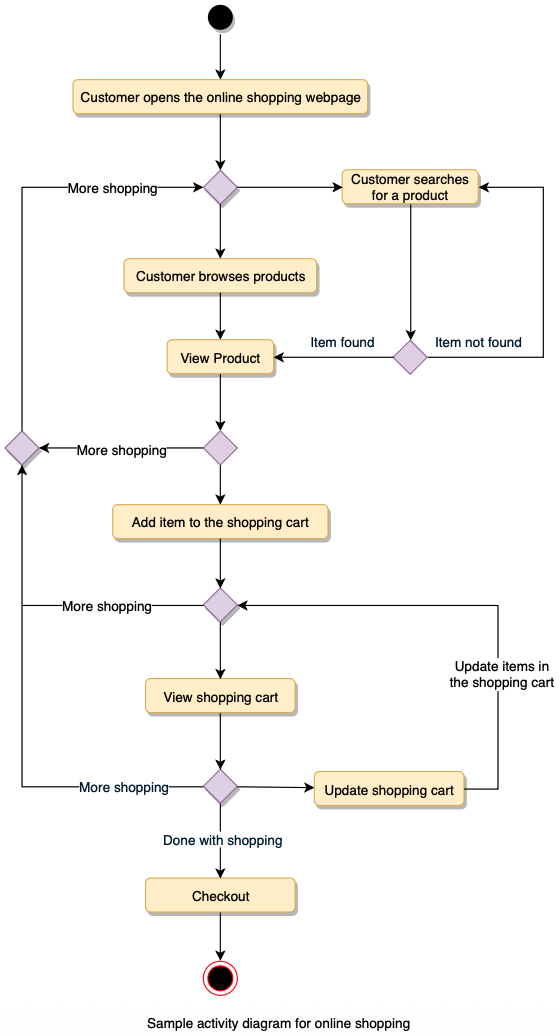

# 3. Control Logic: Branching and Concurrency

Activity Diagrams excel at showing complex logic that involves decisions or simultaneous tasks.

# Decisions and Merges

• Decision Node: A diamond with one incoming flow and multiple outgoing flows. Each outgoing flow has a Guard Condition (e.g., [is_valid]) in brackets.
• Merge Node: A diamond with multiple incoming flows and one outgoing flow. It brings different logic paths back together.

# Concurrency (Fork and Join)

This is a critical distinction from standard flowcharts, allowing the modeling of parallel processing.

• Fork: A heavy horizontal or vertical black bar with one incoming flow and multiple outgoing flows. It indicates that the subsequent activities happen simultaneously or in any order.
• Join: A heavy black bar with multiple incoming flows and one outgoing flow. All parallel activities must reach this bar before the process can continue.

# 4. Swimlanes (Partitions)

Swimlanes are used to group activities based on who is performing them (e.g., "Customer," "Web Server," "Database").

• They are represented as vertical or horizontal columns.
• By placing an action node within a specific swimlane, you clearly define the responsibility or ownership of that task.

# 5. Activity vs. State Machine Diagrams

It is common to confuse these two behavioral diagrams:

• Activity Diagram: Focuses on the flow of work and the sequence of actions. It is driven by the completion of the previous task.
• State Machine Diagram: Focuses on the life cycle of an object and how it reacts to external events (e.g., a "Ticket" moving from Open to Resolved).

# 6. Modern Perspective (2026)

• BPMN Alignment: In modern business analysis, Activity Diagrams are often seen as a technical subset of BPMN (Business Process Model and Notation).
• Workflow Engines: These diagrams serve as the logical foundation for modern "low-code" workflow engines and CI/CD pipeline visualizations.
• Agile Integration: Teams use Activity Diagrams to map out complex "User Stories" that involve multiple conditional paths or background processing that isn't visible in a UI mockup.
